A routing command loses its ACK; stop and locate the sheet rather than resending before establishing execution.
Trusted Records · Devices

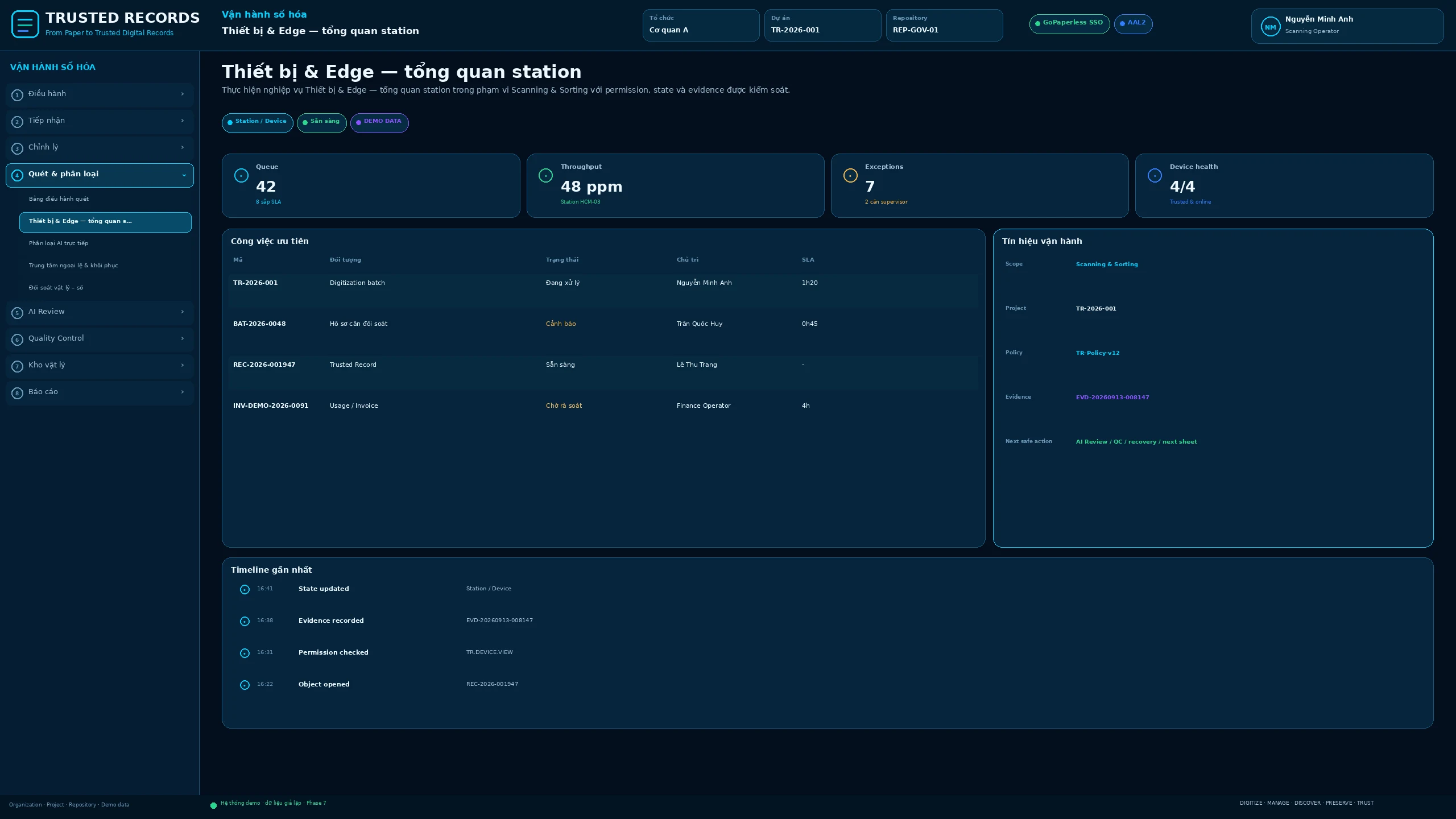

Device/Edge and recovery
TURAPING Flow R is the selected device. Sheet-level compatibility and deployment configuration require separate validation.
Inputs and starting conditions
StationID, device/adapter/version, Edge buffer, SheetID, routing commands, ACK and open jobs.
Workflow and control gates
- 01Detect failure
- 02Stop / isolate
- 03Identify affected sheets
- 04Verify recovery
- 05Reconcile and resume
Diagnostics/calibration follow device instructions; test deadlines, timeouts and safe-stop for the selected configuration. Resume only when paper location and processing records agree.
Exceptions and recovery
Missing sides, full trays, unacknowledged routes, sorter disconnect, offline Edge or AI timeout remain incomplete. Switch to manual handling when position/ACK cannot be established; record reason, recipient and rescan mapping.
Roles, outputs and states
| Responsibilities | Evidence and states |
|---|---|
| Operators verify paper; technicians recover Edge/adapters; suppliers confirm device limits; shift leads approve resume or handover. | Diagnostics, commands/ACK, buffer reconciliation, rescan lineage and shift receipts. Bind failure states to specific SheetIDs/jobs. |
Station failure matrix
| Scenario | Operating decision |
|---|---|
| Jam / multi-feed | Stop, inspect affected range and retain rescan mappings. |
| Missing side | Compare profile, side counts and images before retry. |
| Full tray / missing ACK | Keep incomplete; verify paper position and avoid blind resends. |

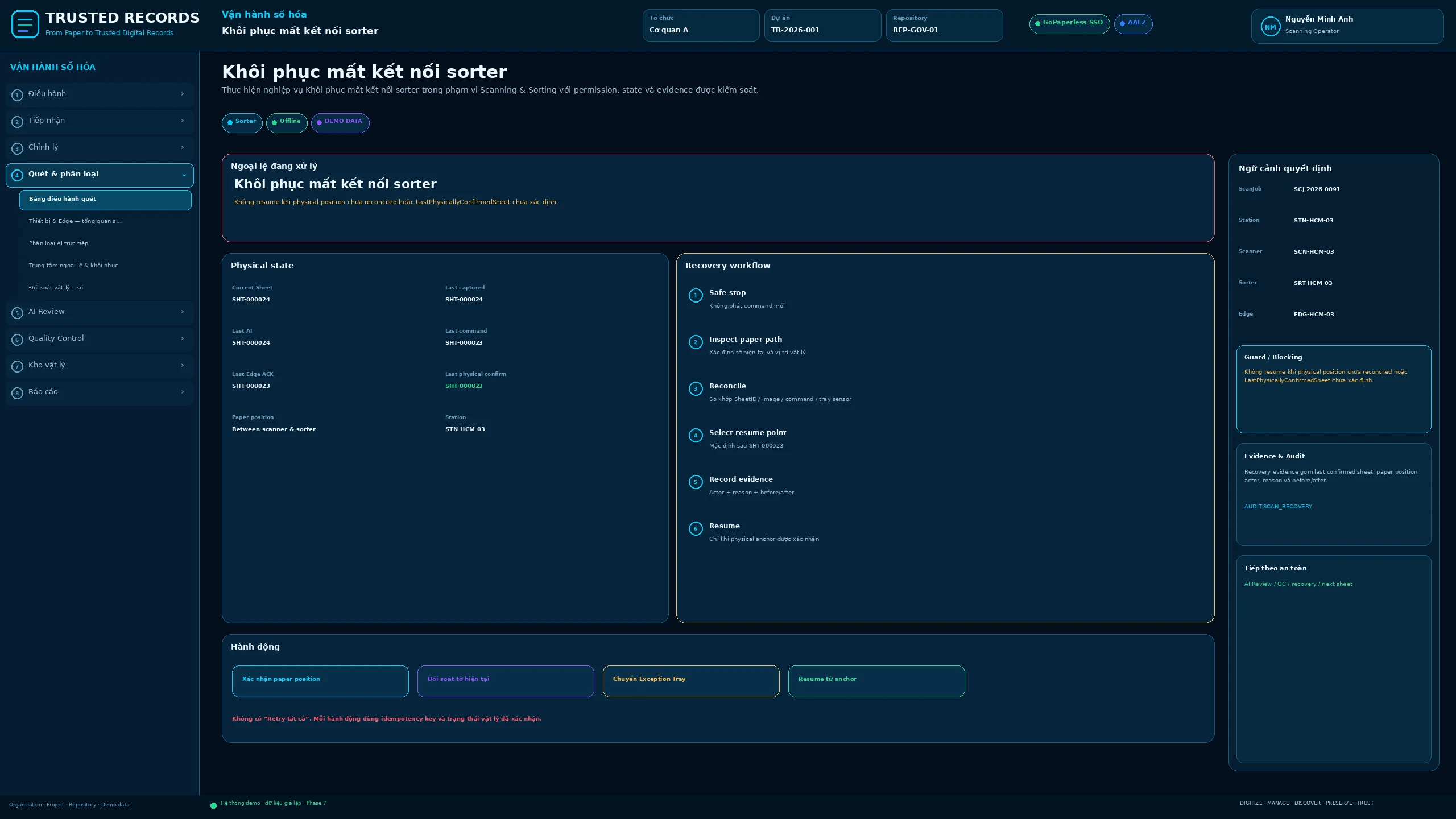

| Sorter disconnect / offline Edge | Configured safe-stop/buffering; reconcile after reconnect. |
| AI timeout | Route to review or reasoned manual handling. |
| Shift handover | Hand over open jobs, buffers and paper custodians. |
Scenario and acceptance criteria
Complete only when
Recovery preserves sheet–image–command–tray mappings and reconciliation.
Interfaces for this workflow
Feasibility matrix requiring acceptance
| Control | Evidence status |
|---|---|
| Early image while paper remains controllable | Mobile-ID requirement; vendor image/timing traces required |
| SheetID, duplex sides and attempts | API/SDK mapping and missing/duplicate-image tests required |
| Decision/ACK/execution/location | Four distinct states; ACK is not location evidence |
| Buffering, interleaving and reordering | Ground-truth sample tests; no acceptance results supplied |
| Full/jam/offline/late | Configured safe-stop/hold; no blind physical-command replay |
Materials and operating responsibilities
Assess loose A4 sheets, thickness, curl, staples/adhesives, printed sides and condition before piloting. Bound books, fragile material and other sizes are outside default scope; do not substitute another model for Flow R. Operators prepare paper, retain custody and establish location after faults; suppliers agree maintenance/replacement, firmware and recovery instructions.
Integration handoff
End-to-end integration workflows
Connect technical states to business decisions instead of merely listing endpoints.
Read detailsOpenAPI and Swagger Reference
The proposed contract is rendered from one local specification; no network Try-It or real credentials.
Read detailsErrors and next actions
A consistent error envelope guides recovery without disclosing sensitive data.
Read detailsFlow R scope
The manufacturer describes intake, scanning, holding, return, filing and packaging. Trusted Records requires sheet–image–decision–location linkage. Received sources contain no accepted API/SDK, firmware, timing, buffer or execution-ACK evidence.
